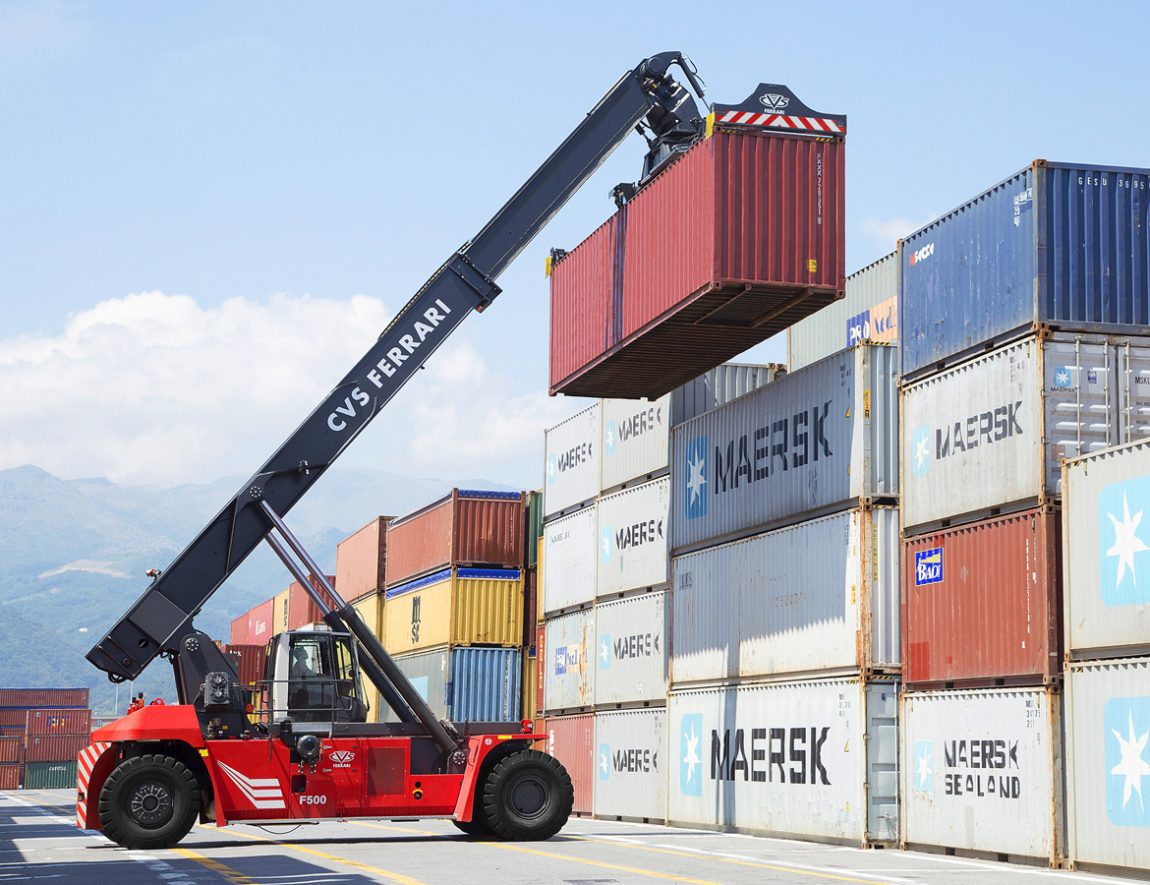

| Model |
|
RSE |
| Attachment type |
|
20â/40â² Top Pick Spreader |
| Load capacity on tires at 1st/2nd/3rd row |
kg |
12.000 | 10.000 | 5.000 |
| Load centre distance at 1st/2nd/3rd row |
mm |
1.780 | 3.850 | 6.400 |
| Load centre to front face of the truck |
mm |
735 |
| Lifting height under twist-lock (hook) |
mm |
15.875 |
| Stacking Ability â containers |
|
1 over 5 = 6 x 8â6â |
| Wheelbase |
mm |
5.100 |
| Service weight â unladen |
kg |
41.700 |
| EU Stage 3a Engine make&model (Rated Power) |
(kW) |
CUMMINS QSB6.7 (164) |
| EU Stage 4 Engine make&model (Rated Power) |
(kW) |
VOLVO TAD 871 VE (185) |
| Transmission make&model |
|
DANA TE17 |
| Service Brakes |
|
Wet Disk on front wheels |
| Tires size |
|
14.00-24 |
| Overall width â excluding Spreader |
mm |
4.143 |
| Overall length â including spreader |
mm |
10.820 |
| Overall height |
mm |
4.275 |
| Seat height |
mm |
2.400 |
| Spreader rotation â clockwise/anticlockwise |
deg |
-85 / +195 |
| Spreader side-shift â left / right |
mm |
+800 / -800 |
| Boom Angle (min / max) |
deg |
0 /65 |
